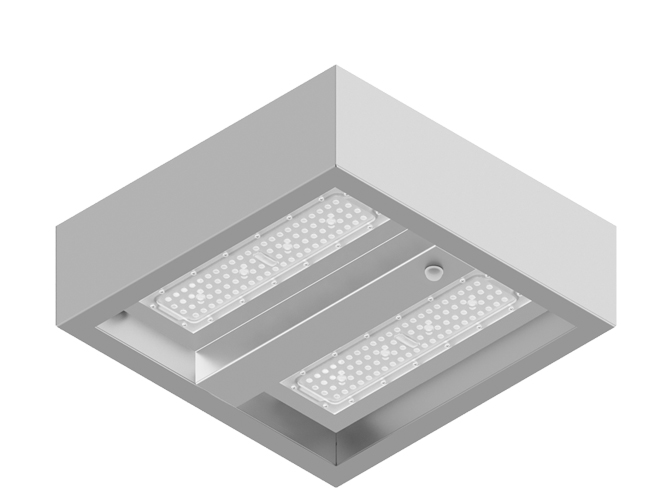

Modular High Bay luminaire system dedicated to gas stations as well as industrial and sports solutions. The very high LED luminous efficiency of luminaires allows to achieve even greater savings in electricity consumption, increasing the efficiency of any lighting modernization project.

Pumplight

High Bay

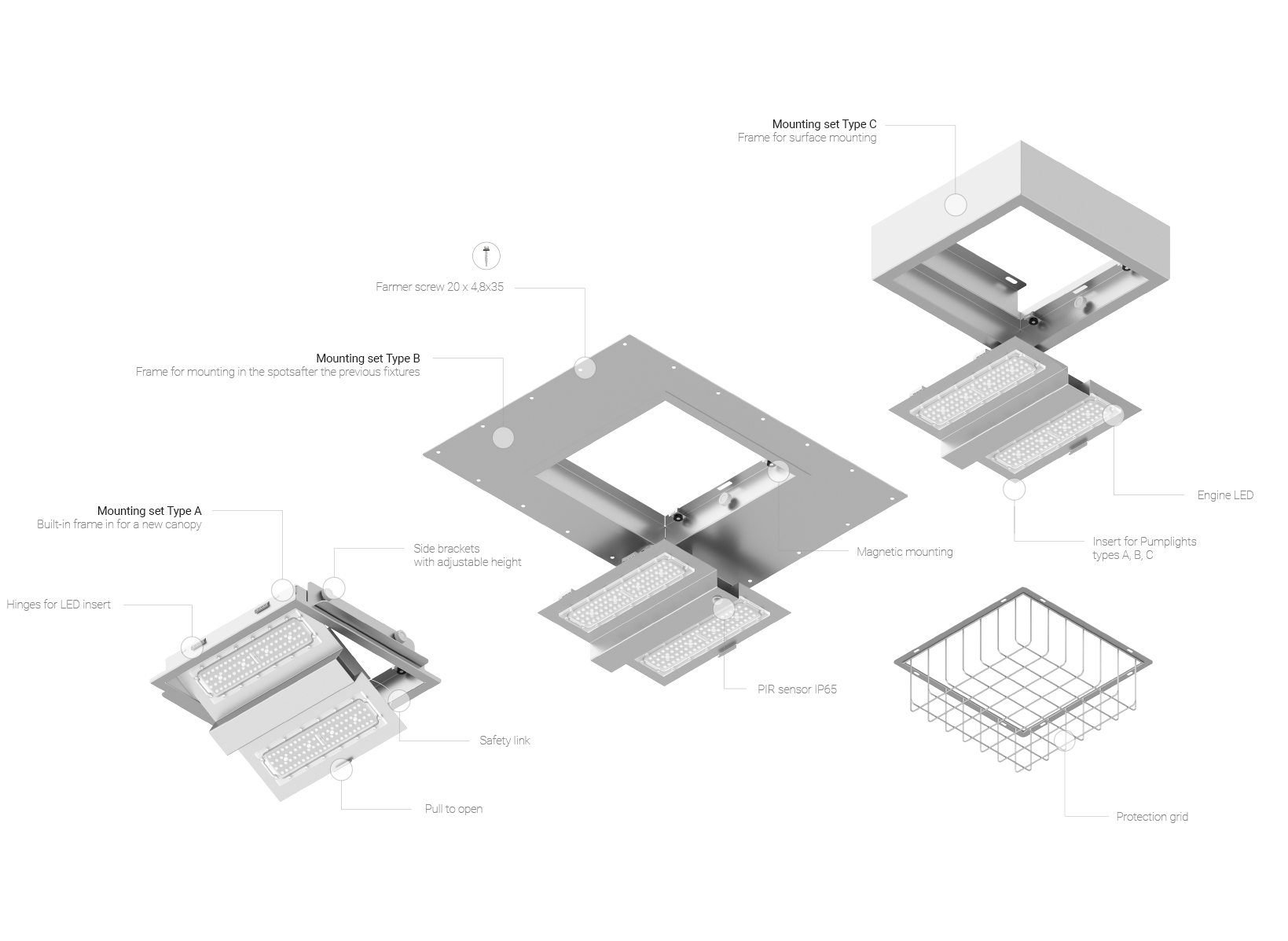

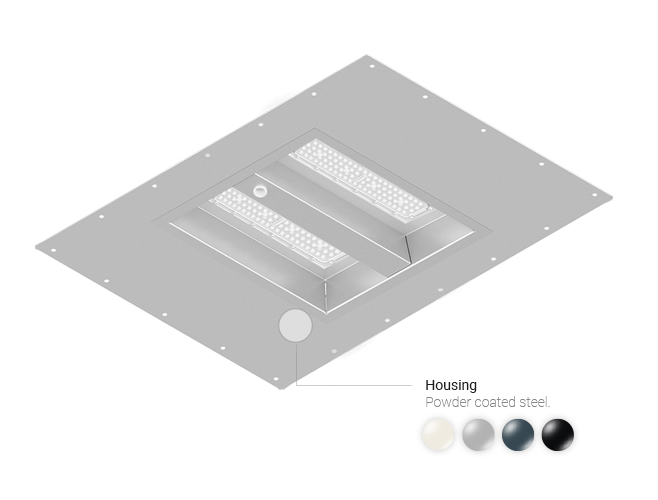

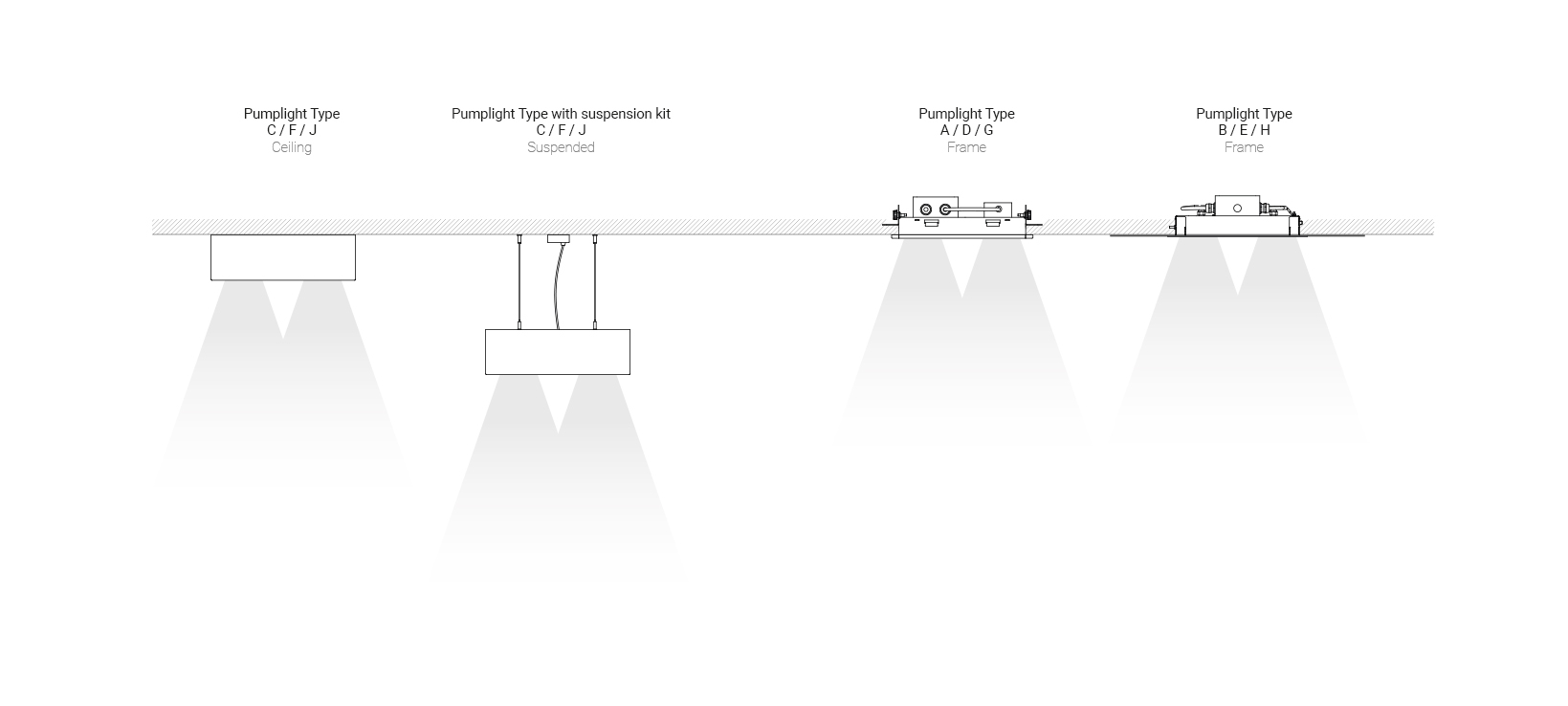

The Pumplight series of luminaires is suitable for any type of installation. Versions are also available to cover up any holes left by dismantled luminaires in retrofitted fuel shelters.

Modular High Bay luminaire system dedicated to gas stations as well as industrial and sports solutions. The very high LED luminous efficiency of luminaires allows to achieve even greater savings in electricity consumption, increasing the efficiency of any lighting modernization project.

There are three types of optics in the Pumplight series: Wide (60°) recommended for luminaire mounting heights of 7-12 m, Medium-food (90°) recommended for mounting heights of 5-8 m, Flood (120°) dedicated to projects where luminaires are mounted at heights of 3-5 m.

ON-OFF LED drivers
LED power supplies with the ability to program selected parameters, including the output current in the range of 70 mA to 1050 mA, which allows you to set aversion of the power of the luminaire, and consequently the value of the luminous flux emitted by LEDs.

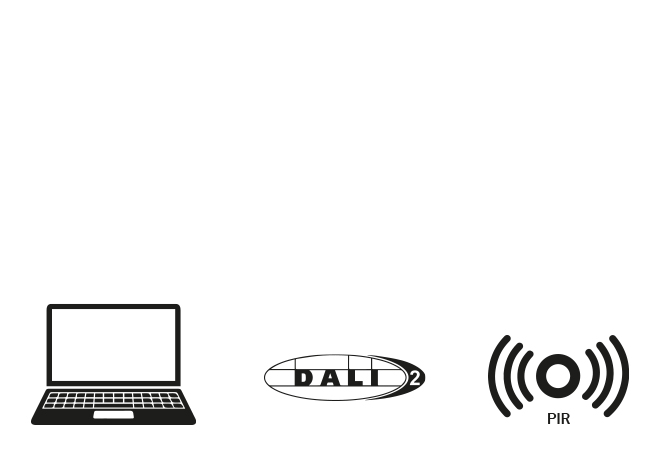

DALI LED drivers
The digital, addressable lighting control system, allowing for regulating the luminous flux emitted by fixtures. The DALI system is characterized by high functionality and exceptionally simple operating. It also allows for creating and configuring light scenes, adjusted to the user’s needs. Each fixture operating in the DALI system is automatically given its own address, which allows both for individual control of fixtures and connecting them into groups.

DALI LED drivers with sensor

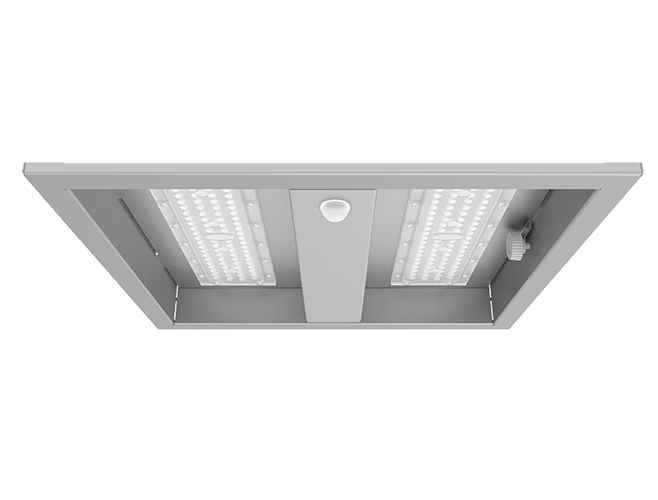

An automatic luminaire power reduction system that allows light intensity to be related to the presence or absence of objects in the detection area of the PIR presence sensor installed in the luminaire. The light intensity increases when an object enters the detection area, when it leaves it the light intensity is automatically reduced. The LED power supplies are programmable with six parameters that change the system’s usage characteristics (see graph below).

System usage characteristics are defined by 6 parameters:

A - Level of luminous flux emitted from the luminaire when the object is present
(default: 100%)
B - Level of luminous flux emitted from the luminaire when the object is absent
D0 - Delay time (default: 3 min)
T1 - Time to maintain reduced intensity level (infinitely long, until presence is
detected*)
F1 - Transition time from level B to A (default: 15 sec.)
F2 - Transition time from level A to B (default: 30 sec.)

* factory-programmed “never off” function.

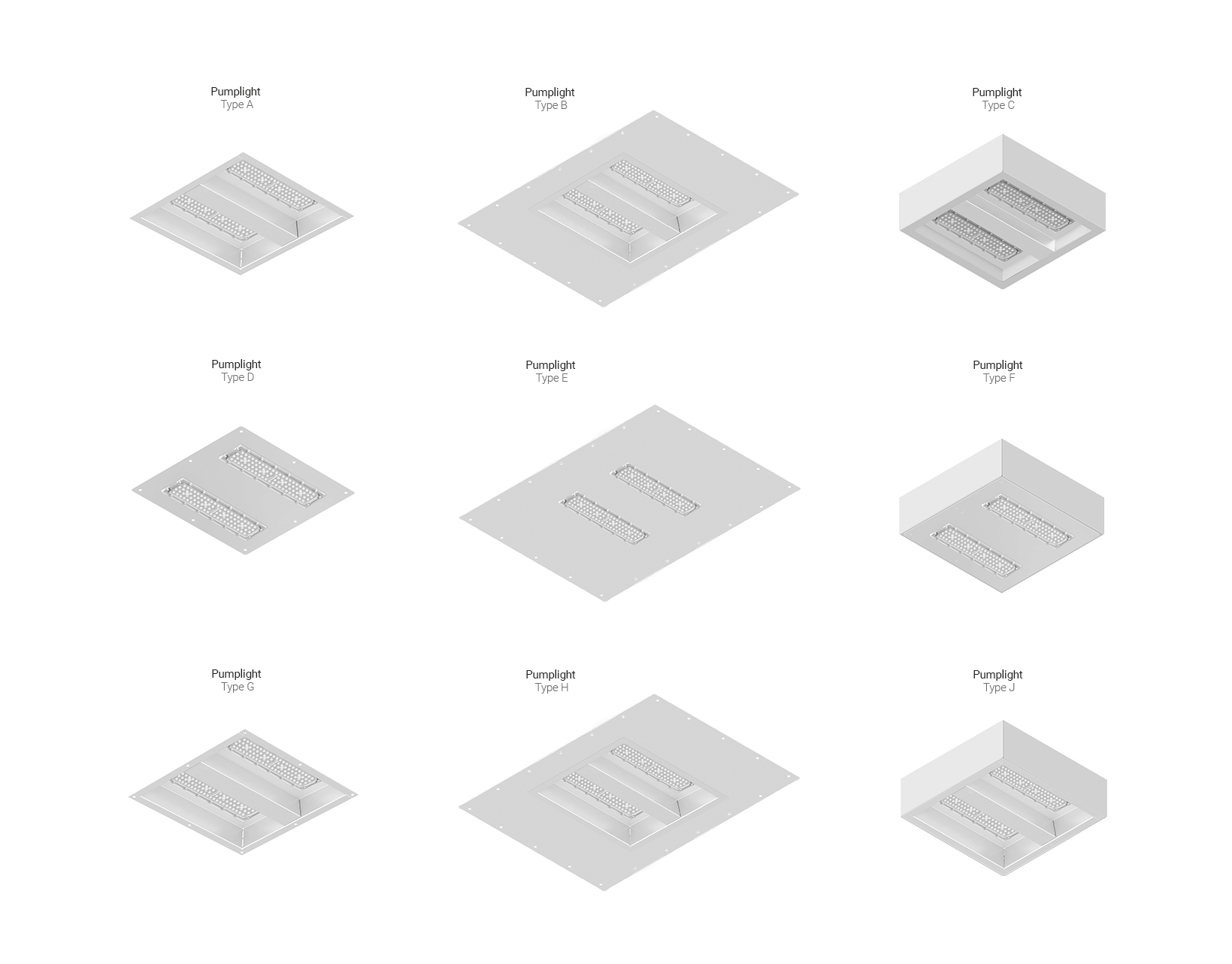

Diverse versions of Pumplight series luminaires, complemented by a various options of technical parameters, allow their versatile use and adaptation of the luminaire model to the implemented project.
