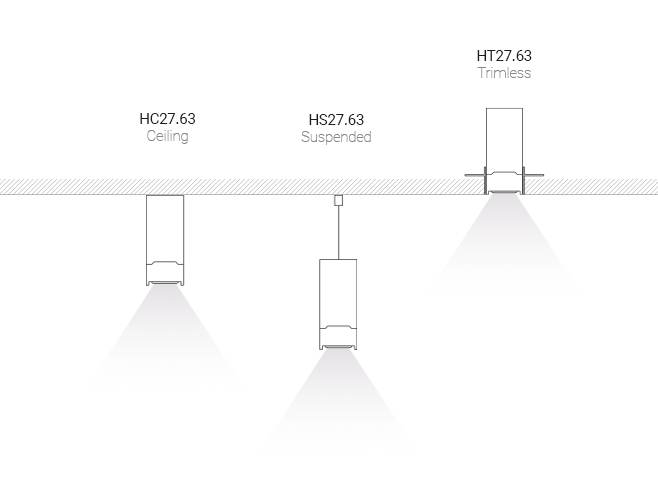

Mounting on one, two, three

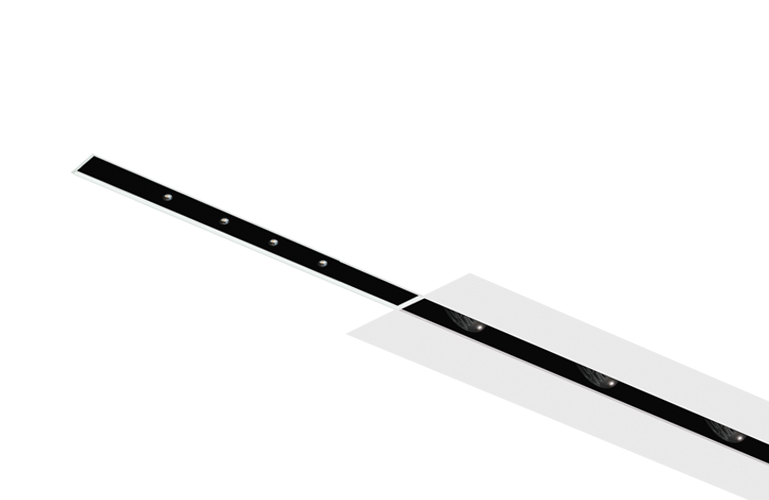

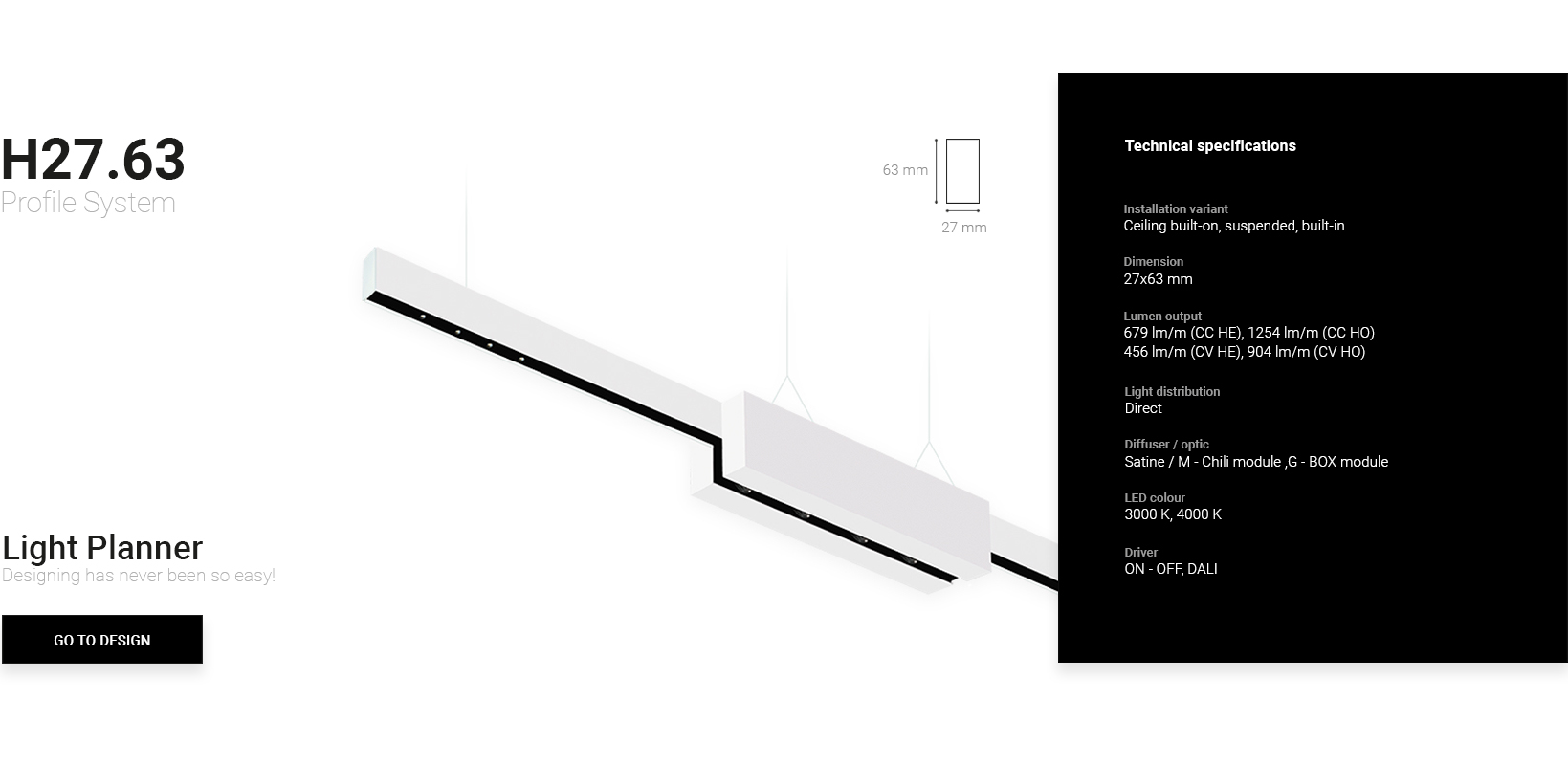

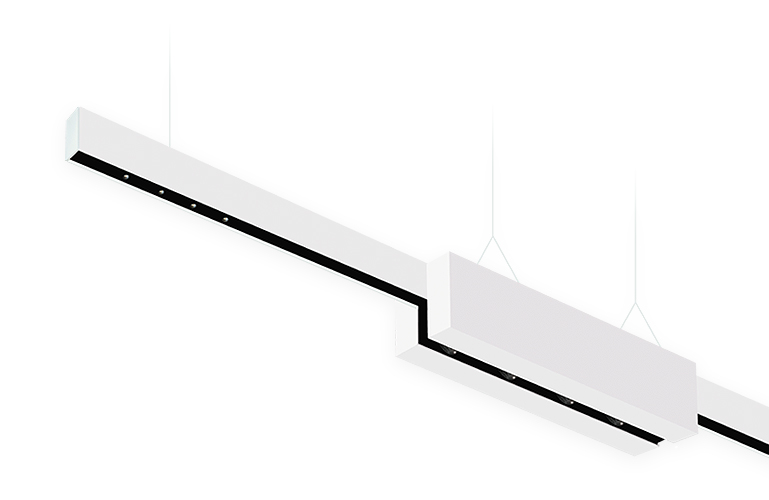

Profiles in the H27 series are an extension of the smallest profile in the U18 series, in the C built-on, S suspended and T built-in versions. H27 are the smallest profiles available in our range, in which power supplies are installed inside the system.
Materials and finishing
The H27 profile is made of powder-coated aluminum available in white, black or gray. Available with modules: linear, G-Box, M-Chili and system connectors. The diffuser recommended is satin.

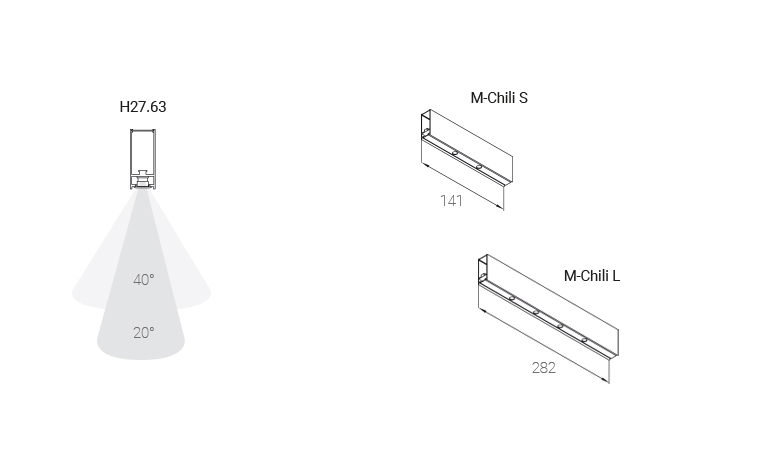

M-chili modules are based on microlens technology with a distribution angle of 20 or 40 degrees.

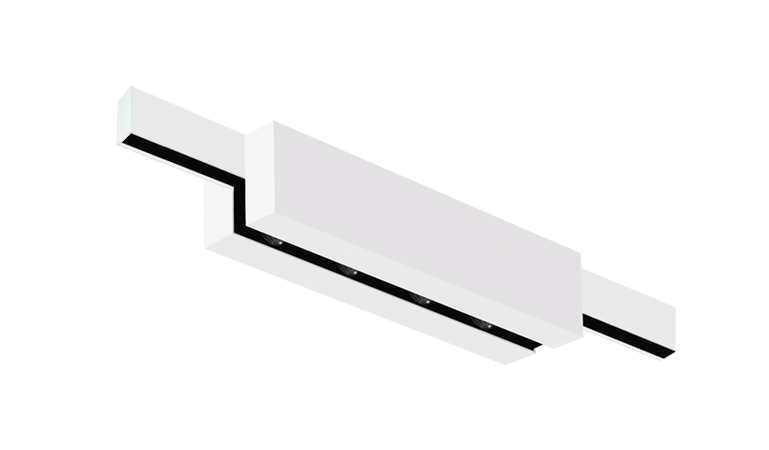

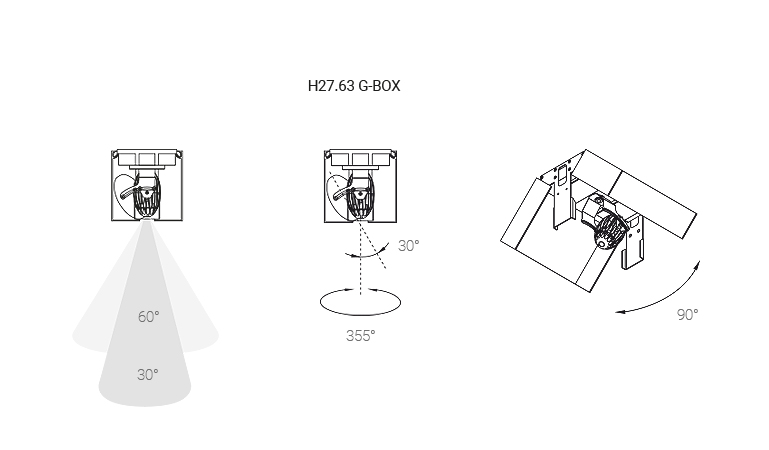

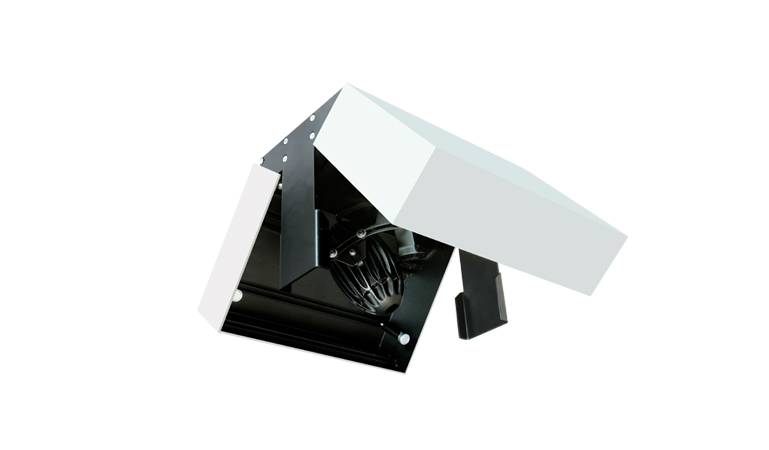

The G-Box module uses LFO optics developed in the Bartenbach lab. Beam spread angle of 30 or 60 degrees. The light source can be adjusted vertically or horizontally by tilting it up to 30 degrees or rotating them up to 355 degrees around their axis. The casing opens 90 degrees for tool-free adjustment of the source.

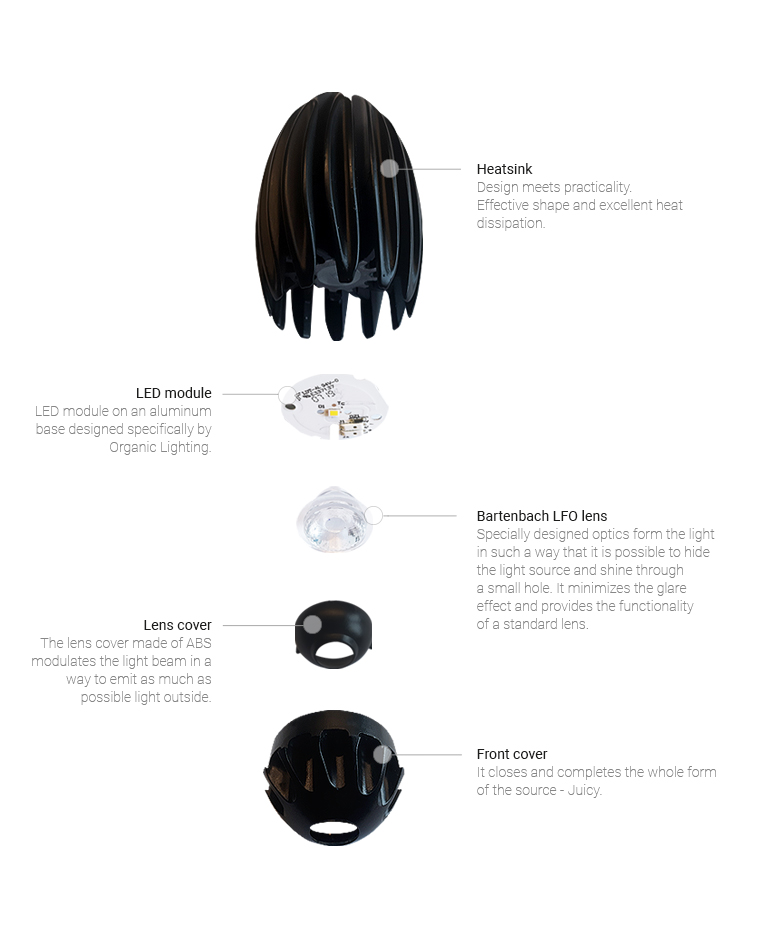

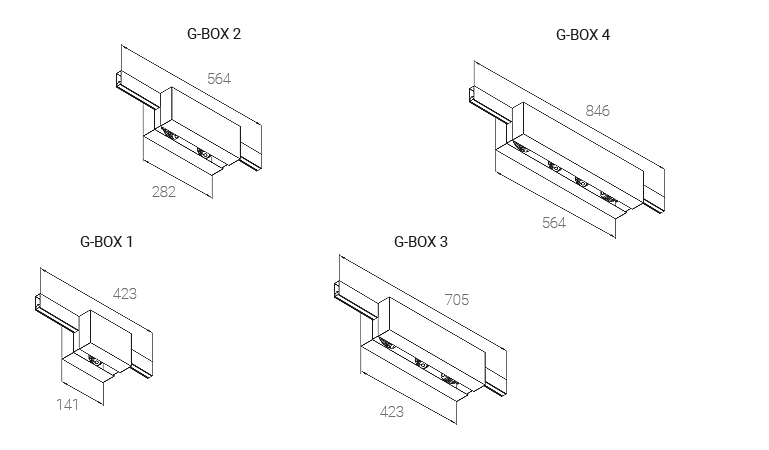

G-Box modules may contain from one to four Juicy sources in LFO technology.
Researchers at the Bartenbach laboratory in Austria have developed the technology to create a line of modern G-Box luminaires. Its greatest strength lies in what cannot be seen, as light is emitted in a way that is invisible to the eye. Its innovative optics design ensures that light is focused in a as small space as possible and then disperses unobtrusively throughout the room.
Connector designations refer to the shape of the letters of the alphabet or their arrangement against a surface, e.g. ML refers to the letter L. The MH connector refers to the horizontal alignment of two segments joined at 135 degrees.
