The U18.32 can be used to build long light lines, decorative effects and general lighting designs. The profile provides unique luminance homogeneity with invisible LED spots.

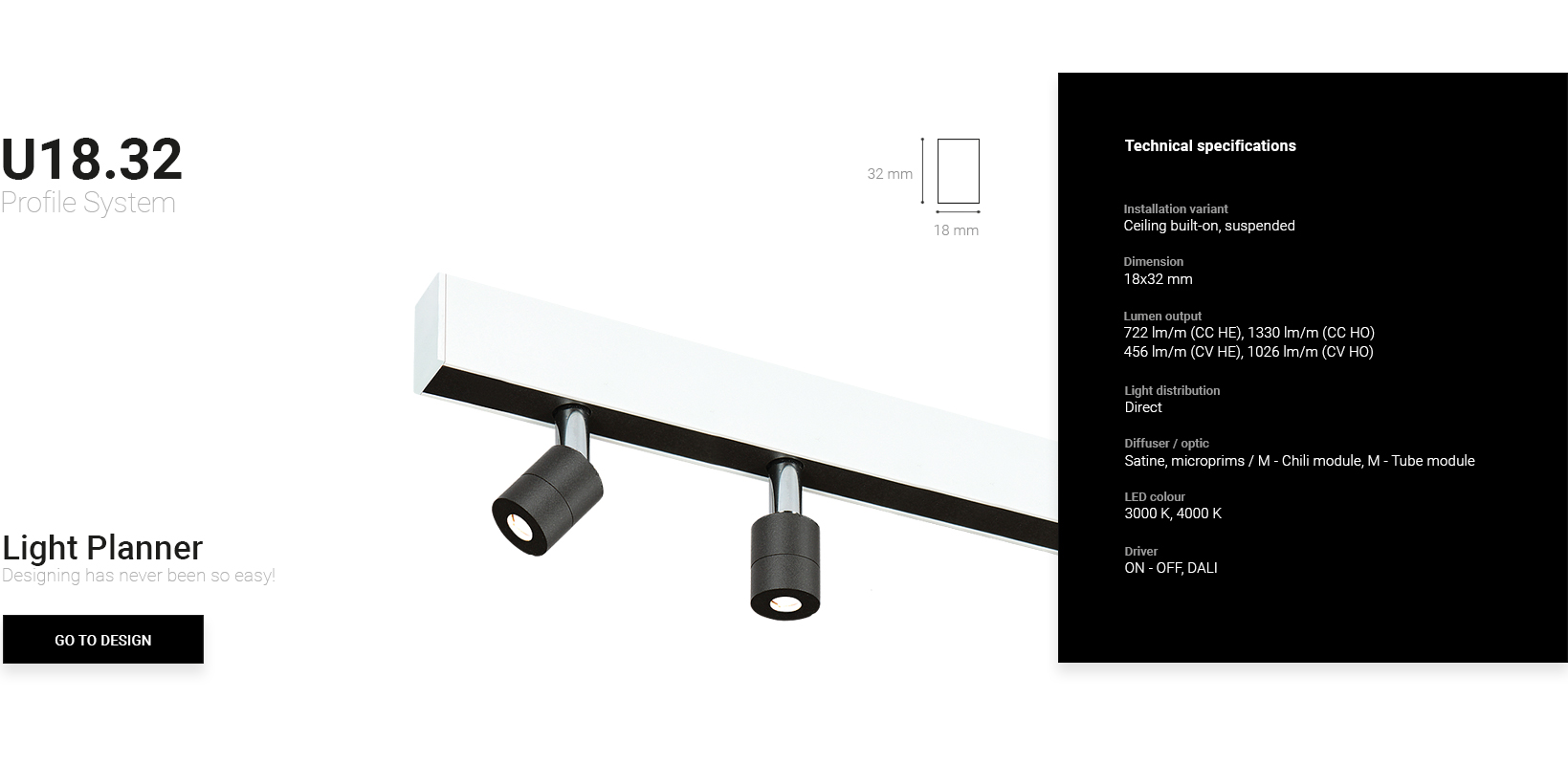

U18.32
Profiles System

Material and finishing

Direct-light profiles. Made of anodized aluminum or powder coated in white or black. Available with satin or microprismatic diffuser.

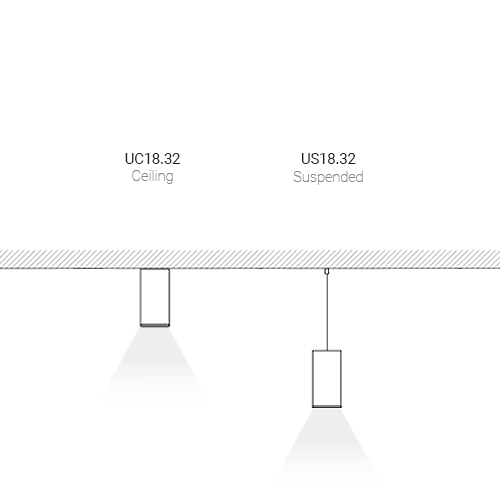

Two types of mounting

The U18.32 profiles are available in two mounting types: ceiling built-on and suspended.

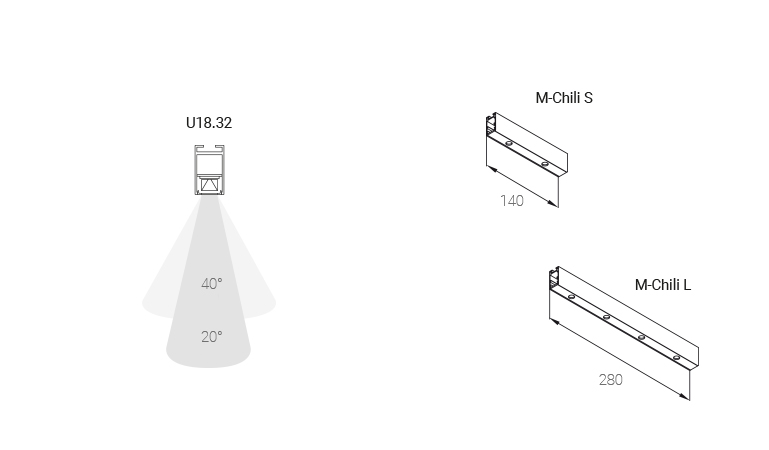

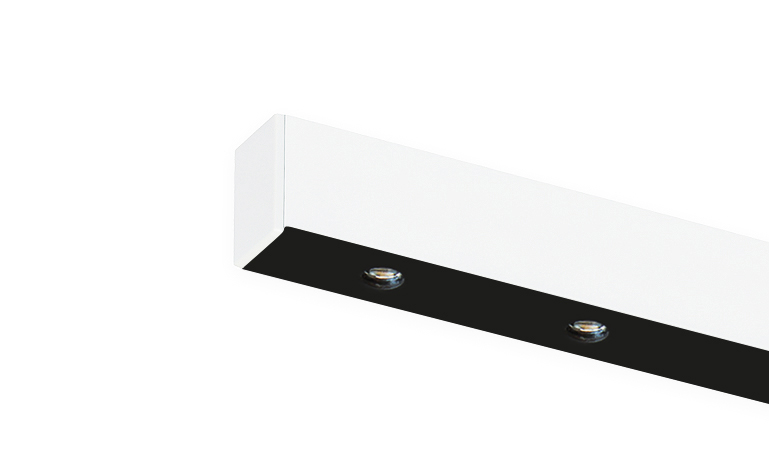

M-Chili modules

M-chili modules are based on microlens technology with a distribution angle of 20 or 40 degrees.

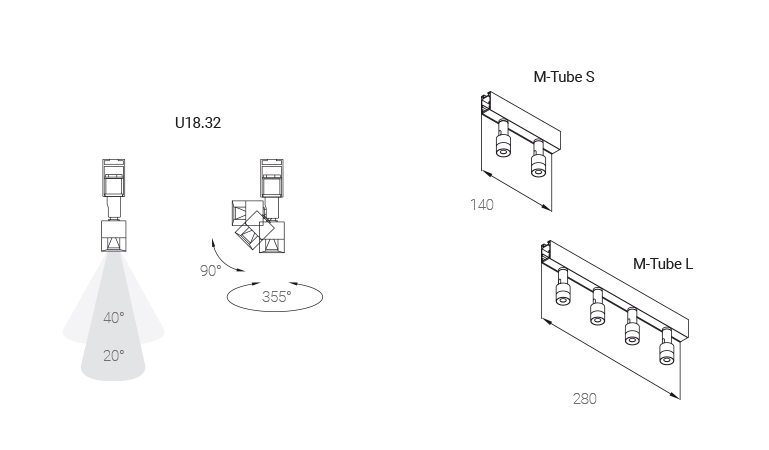

M-Tube modules

M-Tube modules have a beam spread angle of 20 or 40 degrees. They can be adjusted by tilting them up to 90 degrees or rotating them up to 350 degrees around their axis. This type of module is only recommended for U18.32 profile series.
